HABA Eco Series - Horizontal Bandsaw
Supplied to: Chennai, Ahmedabad, Gujarat, Tamil Nadu, Pan-India, UAE, Middle East, Africa, South Asia, Export

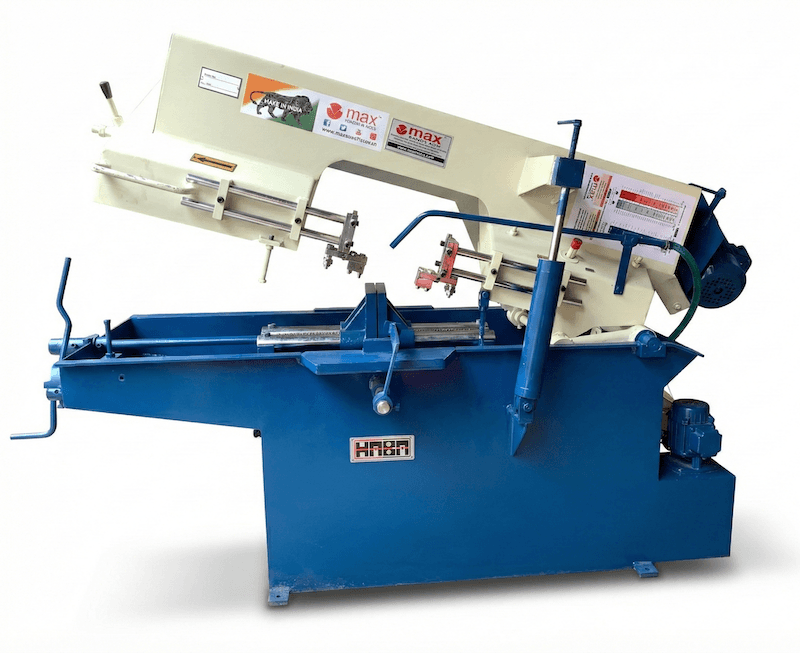

HABA N Series Metal Cutting Bandsaw Machines - 200mm to 500mm, Budget Range

Special Highlights
- ★Budget-Friendly Metal Cutting Bandsaw
- ★Coolant Pump Included as Standard
- ★Wide Size Range - 200mm to 500mm
- ★Worm Gear Shaft Gearbox
- ★Ready to Use on Delivery
- ★HABA Brand Reliability
- ★Ideal for Low to Medium Usage
- ★Suited to MS and Soft Materials
- ★Lower Motor HP Keeps Cost Down
- ★Suitable for Occasional Stainless Steel Cutting
- ★Lifetime Spare Parts Guarantee
- ★Tested Before Dispatch, Test Video Recorded
Specifications
| Model No. | HMM8N | HMM12N | HMM14N | HMM20N |
|---|---|---|---|---|
| Cutting Capacity Round | 200mm | 300mm | 350mm | 500mm |
| Cutting Capacity Square | 175 x 175mm | 250 x 250mm | 300 x 300mm | 400 x 400mm |
| Motor HP | 1.0 HP 3 Phase (ISI IE2 CE Marked - Optional) | 2 HP 3 Phase (ISI IE2 CE Marked - Optional) | 2 HP 3 Phase (ISI IE2 CE Marked - Optional) | 3 HP 3 Phase ISI IE2 CE Marked |
| Drive Type | Standard housing model gearbox | Standard housing model gearbox | Standard housing model gearbox | Standard housing model gearbox |
| Gear and Shaft Material | CI Worm Gear and MS Shaft | CI Worm Gear and MS Shaft | CI Worm Gear and MS Shaft (PB Optional) | CI Worm Gear and MS Shaft (PB Optional) |
| Blade Speed | 25 to 65 m/min | 25 to 65 m/min | 25 to 65 m/min | 25 to 65 m/min |
| Blade Size | 3000 x 27 x 0.9mm | 3760 x 27 x 0.9mm | 4100 x 34 x 1.1mm | 4860 x 34 x 1.1mm |
| Coolant Pump | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM |
| Auto Cut-Off | Yes - Fixed | Yes - Fixed | Yes - Fixed | Yes - Fixed |
| Blade Guide | MS rod with metal and bearing support | MS rod with metal and bearing support | MS rod with metal and bearing support | MS rod with metal and bearing support |
| Painting | Enamel Painted | Enamel Painted | Enamel Painted | Enamel Painted |
| Safety | Blade covered from front, open from below | Blade covered from front, open from below | Blade covered from front, open from below | Blade covered from front, open from below |
| Blade Replacement | From Below (Lift body-change-push body down) | From Below (Lift body-change-push body down) | From Below (Lift body-change-push body down) | From Below (Lift body-change-push body down) |
| Material to Cut | MS, Structural Steel, Pipe and Soft Material (SS rare) | MS, Structural Steel, Pipe and Soft Material (SS rare) | MS, Structural Steel, Pipe and Soft Material (SS rare) | MS, Structural Steel, Pipe and Soft Material (SS rare) |
| Weight | 300 kg | 450 kg | 650 kg | 750 kg |
Overview
HABA Brand High Speed Metal Cutting Bandsaw Machines - N Series. Available in four sizes - 200mm (HMM8N), 300mm (HMM12N), 350mm (HMM14N), and 500mm (HMM20N). Fitted with standard Worm Gear Shaft Gearbox, enamel painted body, front screw cylinder, and coolant pump included as standard. Blade Speed 25 to 65 Mt/Min. Supplied ready to use. Ideal for buyers who need reliable basic cutting performance at a lower budget and for low to medium usage. Spare parts available Pan-India. An economical basic model for workshops where cutting is less frequent. Suited to mild steel (MS) and soft materials, with occasional stainless steel cutting also possible. Cutting time is higher than on the Standard and R Series. Lifetime guaranteed spare parts supply. Tested before dispatch with a test video recorded.
Accessories & Add-ons
Extra Blades Set
Replacement blades for N series - specify model and size when ordering
Roller Stand
Heavy duty roller stand for supporting long bar stock during cutting
More in Horizontal Bandsaw - Manual
Compare All Horizontal Bandsaw - Manual Models

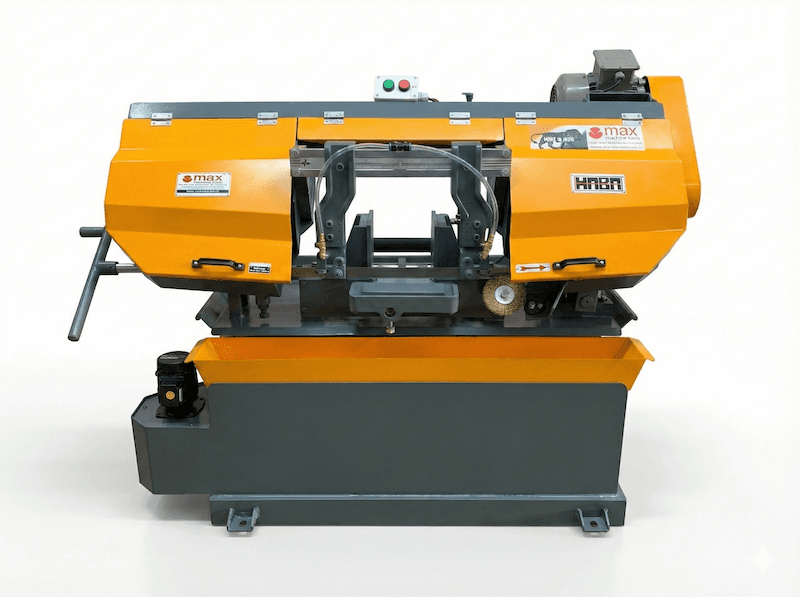

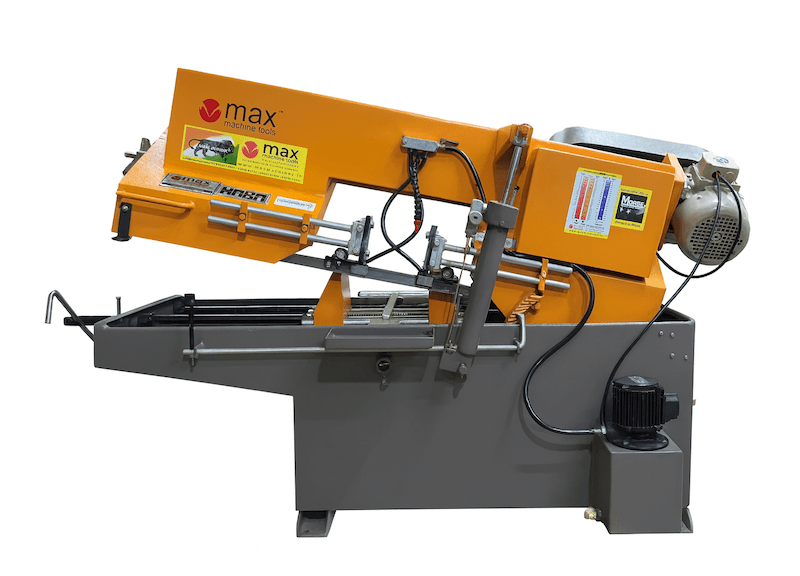

| Specification | HABA R Series - Horizontal Bandsaw★ Featured | HABA Standard Series - Horizontal Bandsaw★ Featured | HABA Eco Series - Horizontal Bandsaw★ Featured |
|---|---|---|---|
| Cutting Capacity Round | 225mm | 210mm | 200mm |
| Cutting Capacity Square | 150 x 300mm | 185 x 185mm | 175 x 175mm |
| Motor HP | 2 HP 3 Phase ISI IE2 CE Marked | 1.5 HP 3 Phase ISI IE2 CE Marked | 1.0 HP 3 Phase (ISI IE2 CE Marked - Optional) |
| Drive Type | Heavy Duty Gear Box | ELECON Brand Gear Box | Standard housing model gearbox |
| Gear and Shaft Material | PB2 gear, 20MN CR5 hardened shaft | PB2 gear, 20MN CR5 hardened shaft | CI Worm Gear and MS Shaft |
| Blade Speed | 15 to 75 m/min | 35 to 65 m/min | 25 to 65 m/min |
| Blade Size | 3000 x 27 x 0.9mm | 3000 x 27 x 0.9mm | 3000 x 27 x 0.9mm |
| Coolant Pump | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM | 0.15 HP 2800 RPM |
| Auto Cut-Off | Yes - Adjustable | Yes - Adjustable | Yes - Fixed |
| Blade Guide | German-designed CI arm, original carbide guides with bearing support | MS rod with carbide and multiple bearing support | MS rod with metal and bearing support |
| Painting | Powder Coated and Enamel Painted | Powder Coated | Enamel Painted |
| Safety | High - Except cutting area, total blade covered. | Blade covered from front, open from below | Blade covered from front, open from below |
| Blade Replacement | From front (Open cover-change-close cover) | From Below (Lift body-change-push body down) | From Below (Lift body-change-push body down) |
| Material to Cut | MS, Structural Steel, SS, Pipe and Soft Material | SS, Inconal, MS, Structural Steel, Pipes and Soft Material | MS, Structural Steel, Pipe and Soft Material (SS rare) |
| Weight | 370 kg | 400 kg | 300 kg |
| Special Feature | — | Rear Hydraulic Cylinder for easy job loading | — |
| View → | View → | ← Current |
Models and Variants
| Model | Size | |
|---|---|---|
| HMM8N | 200mm | |
| HMM12N | 300mm | |
| HMM14N | 350mm | |
| HMM20N | 500mm |
