HABA Standard Series - Horizontal Bandsaw

★ FeaturedHABA

HABA HMM8 High Speed Metal Cutting Bandsaw Machine - 210mm, 1.5 HP 3 Phase

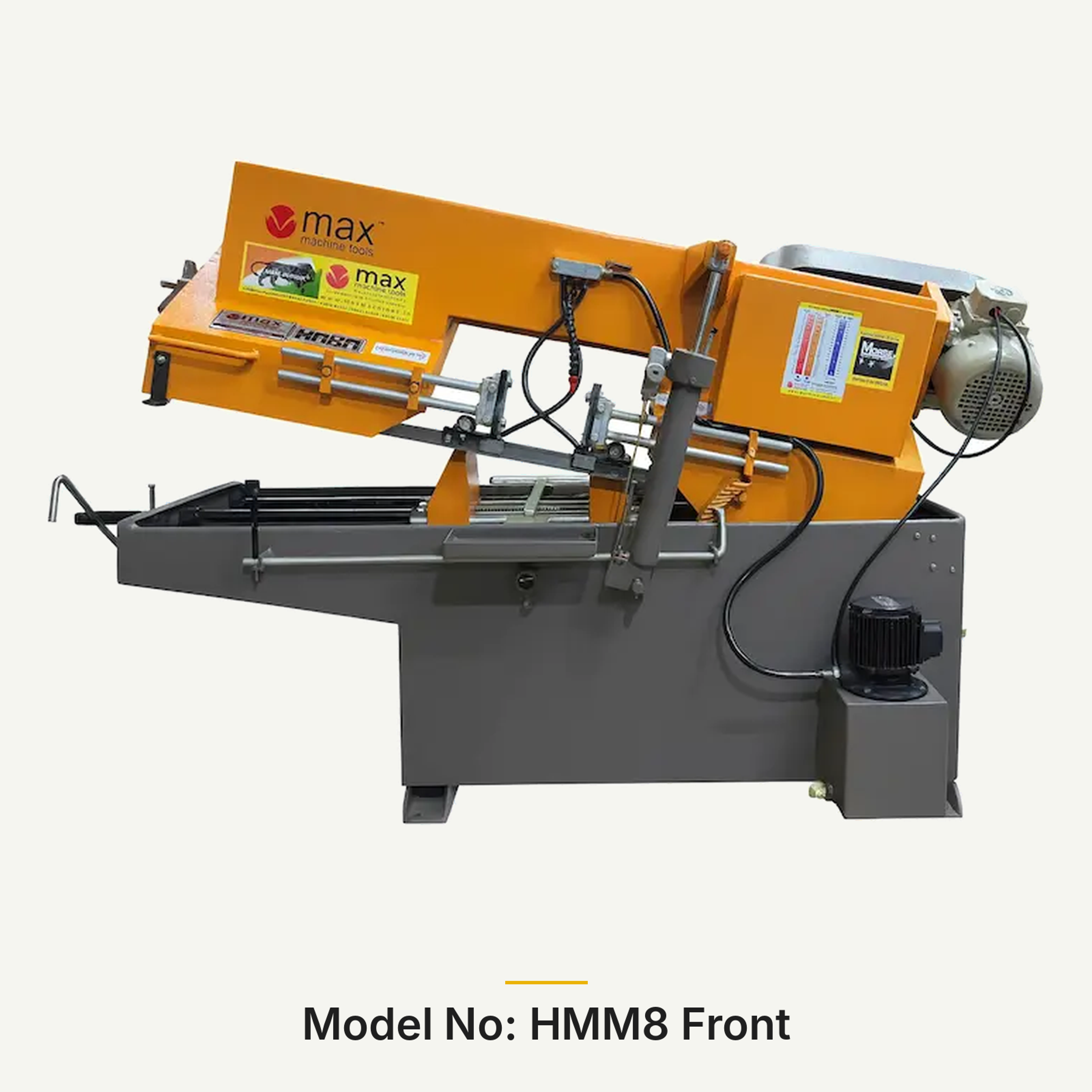

HABA HMM8 horizontal bandsaw machine front view

Special Highlights

★ELECON Gear Box
★Induction Hardened Drive Wheels
★Powder Coated Body
★Rear Hydraulic Cylinder for Easy Job Loading
★Lifetime Spare Parts Guarantee
★Plug and Play - Ready to Use
★Over 260 Machines Sold Across India

📞 Call 💬 WA

Specifications

Model No.	HMM8	HMM12
Cutting Capacity Round	210mm	300mm
Cutting Capacity Square	185 x 185mm	250 x 250mm
Motor HP	1.5 HP 3 Phase ISI IE2 CE Marked	2 HP 3 Phase ISI IE2 CE Marked
Drive Type	ELECON Brand Gear Box	ELECON Brand Gear Box
Gear and Shaft Material	PB2 gear, 20MN CR5 hardened shaft	PB2 gear, 20MN CR5 hardened shaft
Blade Speed	35 to 65 m/min	35 to 65 m/min
Blade Size	3000 x 27 x 0.9mm	3760 x 27 x 0.9mm
Coolant Pump	0.15 HP 2800 RPM	0.15 HP 2800 RPM
Auto Cut-Off	Yes - Adjustable	Yes - Adjustable
Blade Guide	MS rod with carbide and multiple bearing support	MS rod with carbide and multiple bearing support
Special Feature	Rear Hydraulic Cylinder for easy job loading	Rear Hydraulic Cylinder for easy job loading
Painting	Powder Coated	Powder Coated
Safety	Blade covered from front, open from below	Blade covered from front, open from below
Blade Replacement	From Below (Lift body-change-push body down)	From Below (Lift body-change-push body down)
Material to Cut	SS, Inconal, MS, Structural Steel, Pipes and Soft Material	SS, Inconal, MS, Structural Steel, Pipes and Soft Material
Weight	400 kg	650 kg
Price	Request Quote	Request Quote
Availability	In Stock	In Stock

Overview

HABA Brand High Speed Metal Cutting Bandsaw Machine fitted with 1.5 HP 3 Phase Motor (ISI, IE2, CE Marked). Size 210mm. Cutting Capacity Round 210mm, Square 185x185mm. Features ELECON Gear Box, Induction Hardened Drive Wheels, Powder Coated Body, Hydraulic Cylinder at rear for easy job loading, 16 inch 6-Rib Heavy Duty Drive Wheel, 27mm Blade, 3mm Sheet Thickness. Blade Speed 35 to 65 Mt/Min. Supplied ready to use - just plug and run. Lifetime guaranteed spare parts supply. Recommended for high production and non-stop performance with accurate cutting. More than 260 machines sold till 2025.

Videos

Variants & Pricing

Model	Size	Availability	Price
HMM8	210mm	In Stock	Request Quote
HMM12	300mm	In Stock	Request Quote

Accessories & Add-ons

Extra Blades Set

Replacement blades for HMM8 - 3000 x 27 x 0.9mm

Request Quote

Roller Stand

Heavy duty roller stand for supporting long bar stock during cutting

Request Quote

FAQs

The HMM8 cuts round sections up to 210mm and square or rectangle sections up to 185 x 185mm.

It comes with a 1.5 HP 3 Phase ISI certified IE2 grade CE marked motor for energy efficiency and reliability.

The HMM8 uses a premium ELECON Gear Box instead of a basic worm gear, has induction hardened drive wheels, a rear-mounted hydraulic cylinder for easier job handling, and a powder coated body - all adding to durability and performance.

Yes. The HMM8 is specifically recommended for high production and non-stop performance with accurate cutting. Over 260 machines have been sold and are running across India from 2018 to 2025.

Yes. The machine is supplied fully assembled and ready to use. Just connect 3-phase power and start cutting.

The machine uses a 3000 x 27 x 0.9mm blade running at 35 to 65 m/min blade speed.

Yes. The HMM8 comes with a lifetime guaranteed supply of spare parts - even if the model or design changes in future.

Max Machine Tools supplies Pan-India from our Chennai and Ahmedabad locations and also accepts export orders.

More in Horizontal Bandsaw - Manual

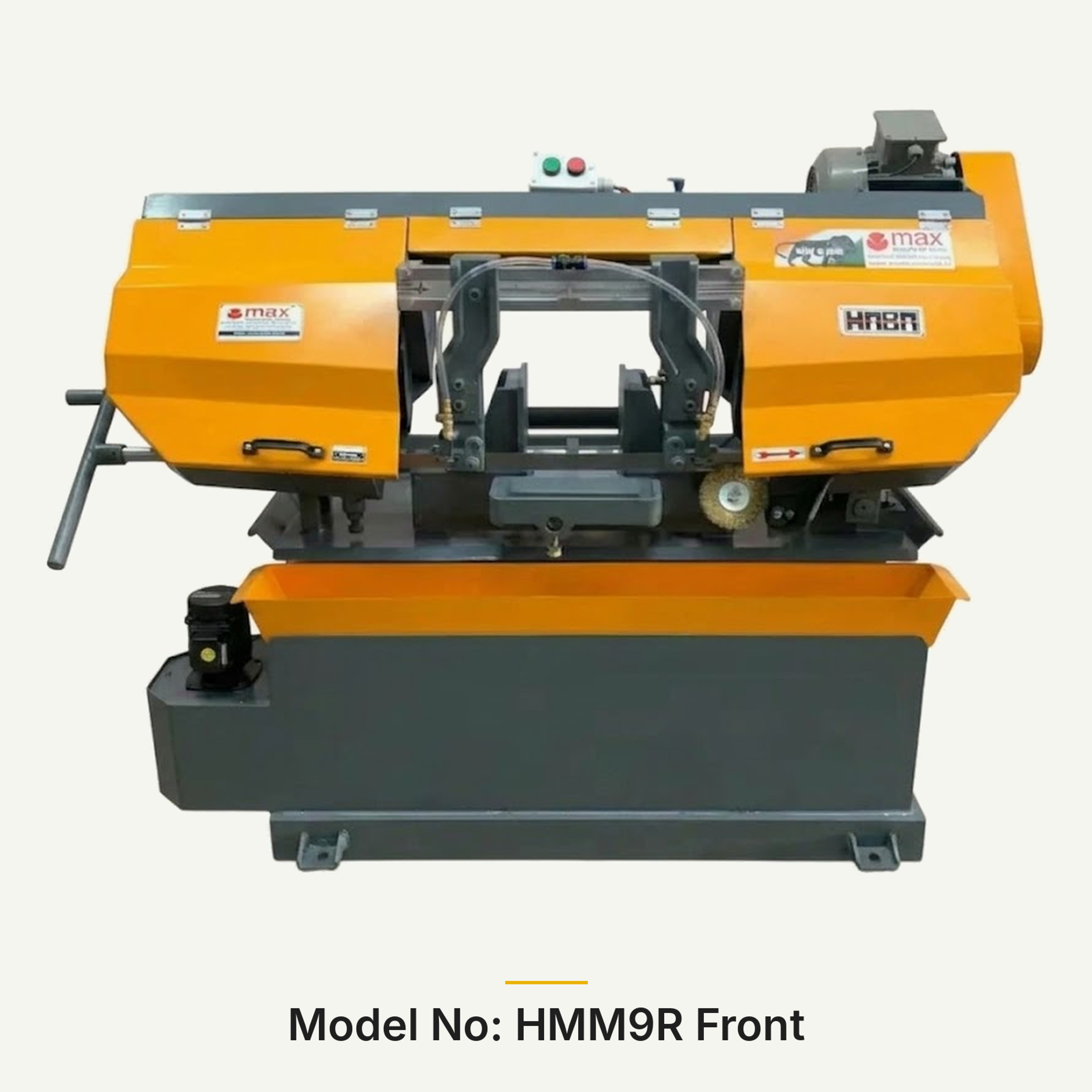

HABA R Series - Horizontal Bandsaw

HABA

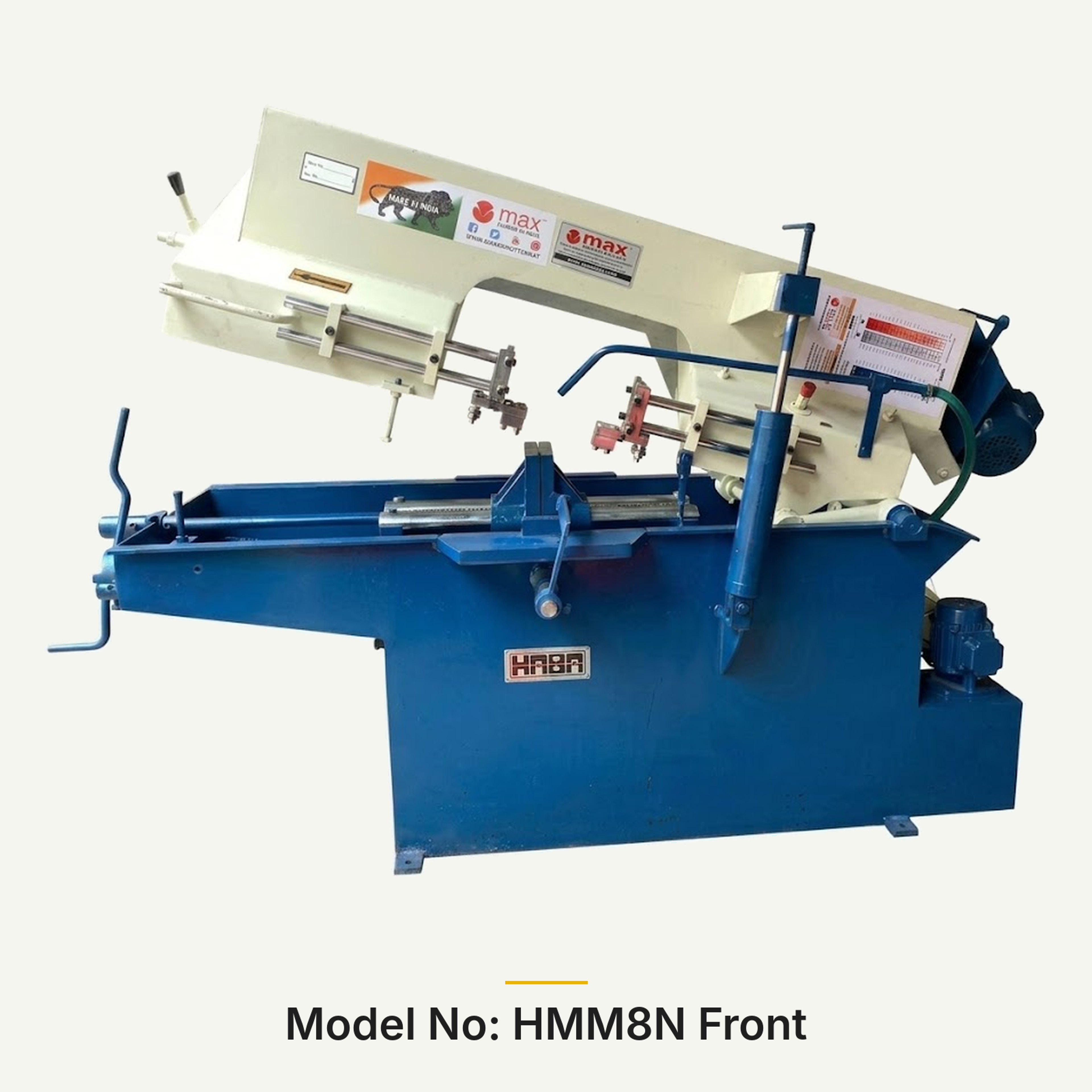

HABA Eco Series - Horizontal Bandsaw

HABA

Compare All Horizontal Bandsaw - Manual Models

Specification	HABA R Series - Horizontal Bandsaw★ Featured	HABA Standard Series - Horizontal Bandsaw★ Featured	HABA Eco Series - Horizontal Bandsaw★ Featured
Cutting Capacity Round	225mm	210mm	200mm
Cutting Capacity Square	150 x 300mm	185 x 185mm	175 x 175mm
Motor HP	2 HP 3 Phase ISI IE2 CE Marked	1.5 HP 3 Phase ISI IE2 CE Marked	1.0 HP 3 Phase (ISI IE2 CE Marked - Optional)
Drive Type	Heavy Duty Gear Box	ELECON Brand Gear Box	Standard housing model gearbox
Gear and Shaft Material	PB2 gear, 20MN CR5 hardened shaft	PB2 gear, 20MN CR5 hardened shaft	CI Worm Gear and MS Shaft
Blade Speed	15 to 75 m/min	35 to 65 m/min	25 to 65 m/min
Blade Size	3000 x 27 x 0.9mm	3000 x 27 x 0.9mm	3000 x 27 x 0.9mm
Coolant Pump	0.15 HP 2800 RPM	0.15 HP 2800 RPM	0.15 HP 2800 RPM
Auto Cut-Off	Yes - Adjustable	Yes - Adjustable	Yes - Fixed
Blade Guide	German-designed CI arm, original carbide guides with bearing support	MS rod with carbide and multiple bearing support	MS rod with metal and bearing support
Painting	Powder Coated and Enamel Painted	Powder Coated	Enamel Painted
Safety	High - Except cutting area, total blade covered.	Blade covered from front, open from below	Blade covered from front, open from below
Blade Replacement	From front (Open cover-change-close cover)	From Below (Lift body-change-push body down)	From Below (Lift body-change-push body down)
Material to Cut	MS, Structural Steel, SS, Pipe and Soft Material	SS, Inconal, MS, Structural Steel, Pipes and Soft Material	MS, Structural Steel, Pipe and Soft Material (SS rare)
Weight	370 kg	400 kg	300 kg
Special Feature	—	Rear Hydraulic Cylinder for easy job loading	—
	View →	← Current	View →
