PRG Eco Series - Vertical Metal Cutting Bandsaw
PRG VMCB18E Vertical Metal Cutting Bandsaw - 460mm Wheel, Budget Range, Runner Riser Cutting
Special Highlights
- ★Budget-Friendly Vertical Metal Cutting Bandsaw
- ★Specially Designed for Aluminium Runner Riser Cutting
- ★460mm Wheel - Wide Blade Compatibility 12mm to 34mm
- ★Built-in Grinding Stone for Blade Sharpening
- ★Rubber Floor Wheels for Easy Machine Movement
- ★Drive and Main Wheel Cleaner Facility
- ★MS Body Fabricated for Long Life
- ★Lifelong Spare Parts Guarantee
- ★Available in 24 inch and 30 inch on Request
Specifications
| Model No. | VMCB18E |
|---|---|
| Wheel Diameter | 460mm (18 inch) |
| Throat Capacity | 405mm |
| Cutting Capacity | 205mm x 405mm |
| Table Size | 550mm x 550mm |
| Table Type | Fixed Table |
| Blade Size | 12mm / 19mm / 27mm / 34mm x 3700mm approx |
| Motor Power | 2 HP 3 Phase |
| Wheel Material | MS Machined Wheels |
| Body | MS Fabricated for Long Life |
| Blade Sharpening | Grinding Stone for Carbon Steel Blade Grinding |
| Mobility | Rubber Moving Floor Wheels for Easy Relocation |
| Wheel Cleaning | Drive and Main Wheel Cleaner Facility |
| Special Application | Aluminium Runner Riser Cutting |
| Other Sizes | Available in 24 inch and 30 inch on request |
| Price | Request Quote |
| Availability | In Stock |
Overview
The PRG Eco Series VMCB18E is a budget-friendly vertical metal cutting bandsaw designed for cutting aluminium runner risers, castings, MS, SS, CI, copper, brass, zinc, wood, rubber wheels, and AAC blocks. Built by Max Machine Tools under our PRG brand, the VMCB18E features 460mm MS machined wheels, a 550mm x 550mm fixed table, and accepts blade widths from 12mm to 34mm for versatile cutting applications. Special features include a grinding stone for carbon steel blade sharpening, rubber moving floor wheels for easy machine relocation, and wheel cleaner facility for both drive and main wheels. Lifelong spare parts availability guaranteed. Available in 24 inch and 30 inch sizes on request. Supplied plug and play across Chennai, Ahmedabad, Pan-India, and export markets.
Variants & Pricing
| Model | Size | Availability | Price | |
|---|---|---|---|---|
| VMCB18E | 460mm Wheel | In Stock | Request Quote |
Accessories & Add-ons
Extra Blades
Replacement blades in 12mm, 19mm, 27mm, and 34mm widths - specify application when ordering
Tool Kit
Standard tool kit supplied with the machine
FAQs
More in Metal Cutting Vertical Bandsaw
Compare All Metal Cutting Vertical Bandsaw Models

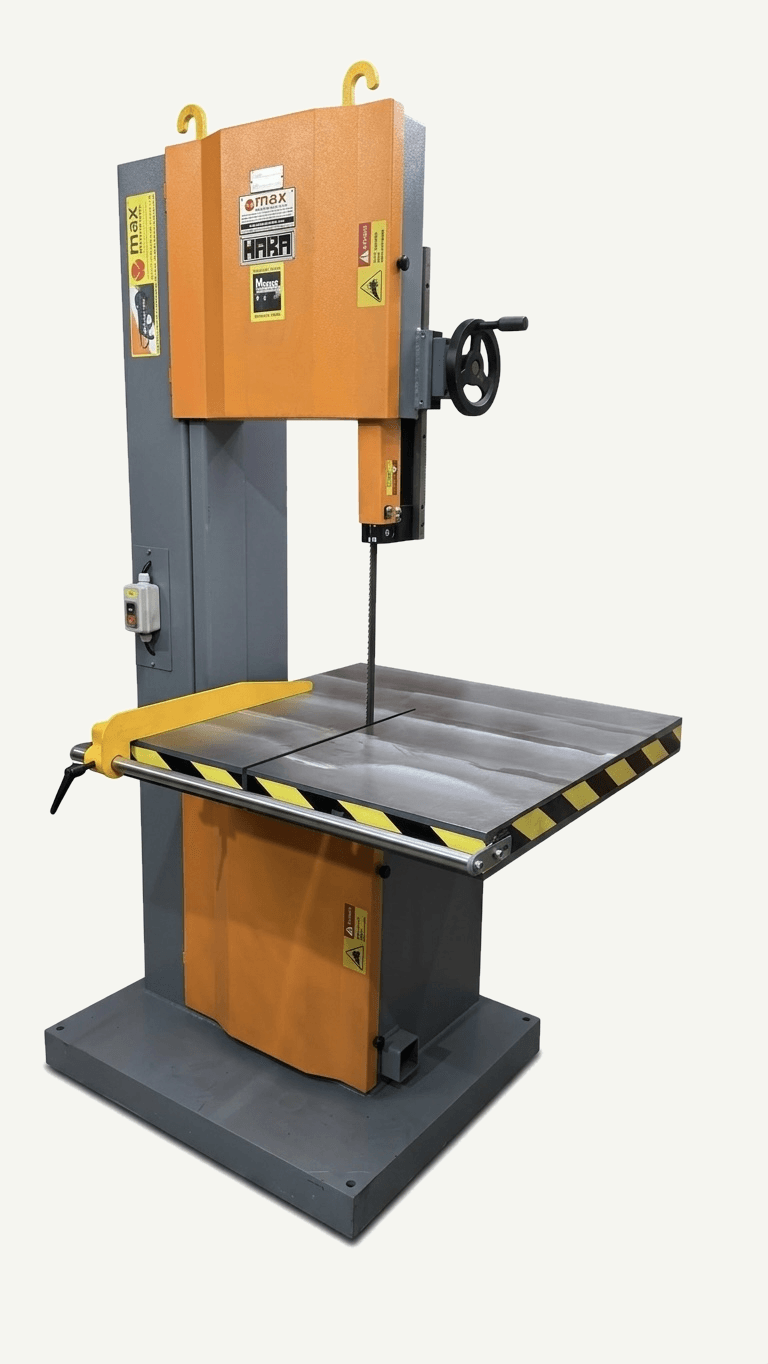

| Specification | HABA R Series - Vertical Metal Cutting Bandsaw★ Featured | PRG Standard Series - Vertical Metal Cutting Bandsaw★ Featured | PRG Eco Series - Vertical Metal Cutting Bandsaw★ Featured |
|---|---|---|---|
| Wheel Diameter | 400mm (16 inch) | 450mm (18 inch) | 460mm (18 inch) |
| Throat Capacity | 350mm +/-10mm | 450mm | 405mm |
| Table to Guide Height | 390mm | — | — |
| Floor to Table Height | 1000mm approx | — | — |
| Sliding Table Size | 800mm x 800mm | — | — |
| Sliding Movement | 400mm | — | — |
| Sliding Tilting | Fixed | — | — |
| Blade Size | 27mm x 3505mm (Optional 12mm to 19mm) | 12mm / 19mm / 27mm x 3500mm approx | 12mm / 19mm / 27mm / 34mm x 3700mm approx |
| Blade Speed | 700 / 1100 / 1700 m/min | — | — |
| Blade Guide | Ceramic - High Speed Spark-Free Cutting | — | — |
| Blade Guide Movement | Rack and Pinion | — | — |
| Motor Power | 2 HP 3 Phase ISI IE2 Crompton CG | 2 HP 3 Phase | 2 HP 3 Phase |
| Motor Brand | Crompton CG ISI IE2 | — | — |
| Electricals | Siemens / Schneider | — | — |
| Bearings | SKF / FAG / NTN Japan | — | — |
| Body | MS Fabricated - Duco Paint and Powder Coated | MS Fabricated for Long Life | MS Fabricated for Long Life |
| Safety | All blade areas covered except cutting zone - Motor fully covered | — | — |
| Max Table Load | 350 to 450 kg approx | — | — |
| Machine Weight | 450 kg approx | — | — |
| Cutting Capacity | — | 275mm | 205mm x 405mm |
| Table Size | — | 450mm x 450mm | 550mm x 550mm |
| Table Tilting | — | 45 degrees | — |
| Table Type | — | Tilting Table | Fixed Table |
| Wheel Speed | — | 750 RPM | — |
| Wheel Material | — | Cast Iron - Dynamically Balanced | MS Machined Wheels |
| Blade Tension | — | Manual Adjustment | — |
| Special Application | — | Aluminium Runner Riser Cutting | Aluminium Runner Riser Cutting |
| Blade Sharpening | — | — | Grinding Stone for Carbon Steel Blade Grinding |
| Mobility | — | — | Rubber Moving Floor Wheels for Easy Relocation |
| Wheel Cleaning | — | — | Drive and Main Wheel Cleaner Facility |
| Other Sizes | — | — | Available in 24 inch and 30 inch on request |
| View → | View → | ← Current |
